Thermal Imaging Module 640 X 512 Resolution NETD 45mk Thermal Camera

Model Number : A6417S

Place of Origin : China

MOQ : 1

Payment Terms : All are acceptable except L/C

Supply Ability : 500/Month

Delivery Time : 3-5days

Price : Negotiation

Special Features : Waterproof / Weatherproof

Spectral Response : 8-14 μm

Pixel Pitch : 17um

Control Port : RS232

Dimension : 40x40x48mm

Technology : Infrared

IR Resolution : 640x512

NETD : 45mk@30°C, #F1.0

Detector : Uncooled VOX FPA

weight : 100g

Contact Now

A6417S-2 AOI Thermal imaging Module VOX 640x512 thermal camera core 17um NETD45mk

Thermal Imaging Module 640 X 512 Resolution NETD 45mk Thermal Camera

Performance
FOV/Minimum Focus Distance	31° x25°/1m(19mm)
N.E.T.D	≤45mK@30°C, #F1.0
Detector Type	Uncooled microthermal VOx FPA
Resolution	640X512
Wave range	8-14um
Spatial resolution	0.89mrad(19mm Lens)
Environment
Operating Temperature	-40°C to +55°C
Storage Temperature	-40°C to +70°C
Humility	95% Non-condensing
Protection Rate	Customize
Physical
Weight	≤100g, Without Lens
Size	≤40mm(W)x40mm(H)x48mm(L), Without Lens
Interface & Electronics
Interface	J30J-9(default),Mini CameraLink(Customize)
Power Supply	DC 3-10V
Video Output	Combined:PAL@50Hz(NTSC@60Hz customize)
Digital Output	CameraLink Customize
Control	RS232(default),RS485, RS422(Customize)
Power Consumption	≤2.0W(Static)
Start Up Time	≤20s
Optional Accessories
Lenses	13mm: 45° x 37° 19mm: 31° x 25° 35mm: 17.7゜×13.3゜ And all popular lenses
DRI [Human: 1.7m x 0.6m]
Detect	400m
Recognize	200m
Verify	100m

Our team

we have professional techinicain team all in this area more than 20 years, welcome customers from all over the world visit our website, and inform us if you have any needs, we are looking forward to give you good services!

Thermal Imaging Module 640 X 512 Resolution NETD 45mk Thermal Camera

Product Tags:

night vision camera module

digital camera module

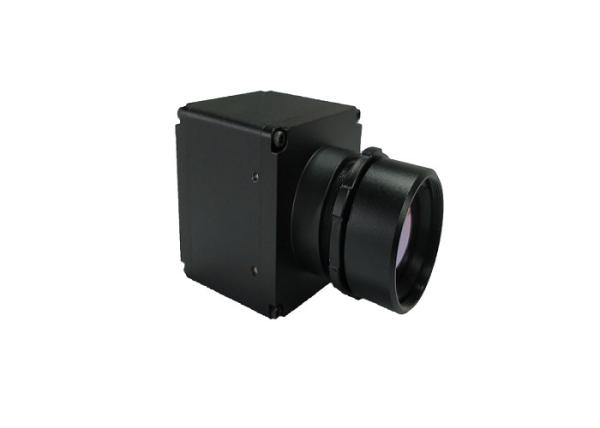

Thermal Imaging Module 640 X 512 Resolution NETD 45mk Thermal Camera Images
